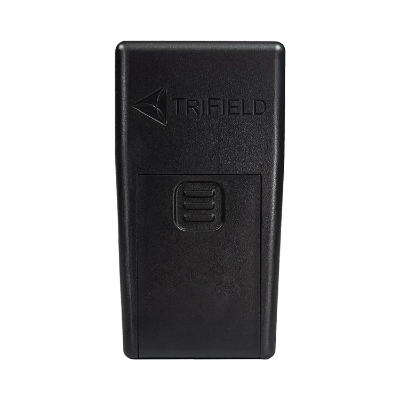

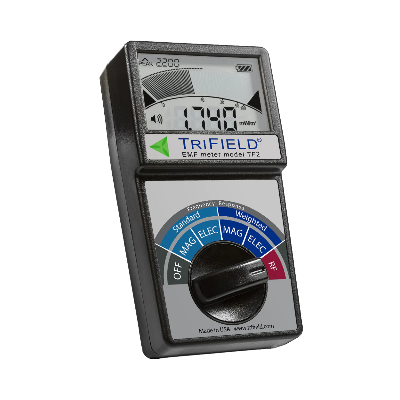

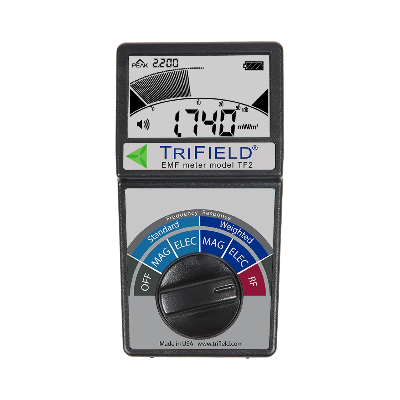

The TriField EMF Meter is an AC gaussmeter, AC electric field meter, and radio power density meter in a single unit, that combines all the features needed for fast, accurate measurements of electromagnetic fields (EMF). In addition to standard AC measurement modes, a special frequency weighted mode will properly scale the magnetic and electric measurements to indicate the full magnitude of currents produced by each type of field inside the human body. 9V Battery required.
Click here for quick start guide
Please be advised that the Trifield meters are quality control tested prior to packaging and cannot be returned once opened and used.
Please read the instruction manual or view the YouTube video below on how to use the Trifield meter before purchasing. If you only wish to use the meter for a short period of time, please see our hire options.
Features:
- Detects all three types of EMF pollution: AC magnetic, AC electric, and RF/microwave
- Special frequency weighting mode for measuring electric current from EMF in the human body
- AC Magnetic Mode covers 40 Hz – 100 kHz with range of 0.1 – 100.0 milligauss (mG)
- AC Electric Mode covers 40 Hz – 100 kHz with range of 1 – 1000 volts per meter (V/m)
- RF Mode covers 20 MHz – 6 GHz with range of 0.001 – 19.999 milliwatts per square meter (mW/m2)
- AC magnetic measurements are 3-axis, allowing for quick readings, regardless of meter orientation
- Large liquid-crystal display (LCD) for crystal clear, accurate readings
- Adjustable backlight for use in low-light environments
- Audio Indicator emits sound that helps to pinpoint EMF sources
- Peak Hold captures fast pulses, for measuring fast digital signals
- Operates for more than 20 hours on a 9V battery, with a low battery indicator
- The TF2 measures up to 6 GHz and so that includes the tower to phone radiation 5G works on (3.5 – 3.6GHz).
Applications:
- Mobile phone and cell tower RF radiation
- Smart meter RF radiation
- Wi-Fi router and Bluetooth RF radiation
- Overhead AC power line and transformer EMF emissions
- Laptop, refrigerator, circuit breaker box, etc. appliance EMF emission
- EMF emission inside aircraft and motor vehicles
- Microwave oven leak
- Location and EMF of wiring in walls
- EMF from plumbing pipes used as grounding

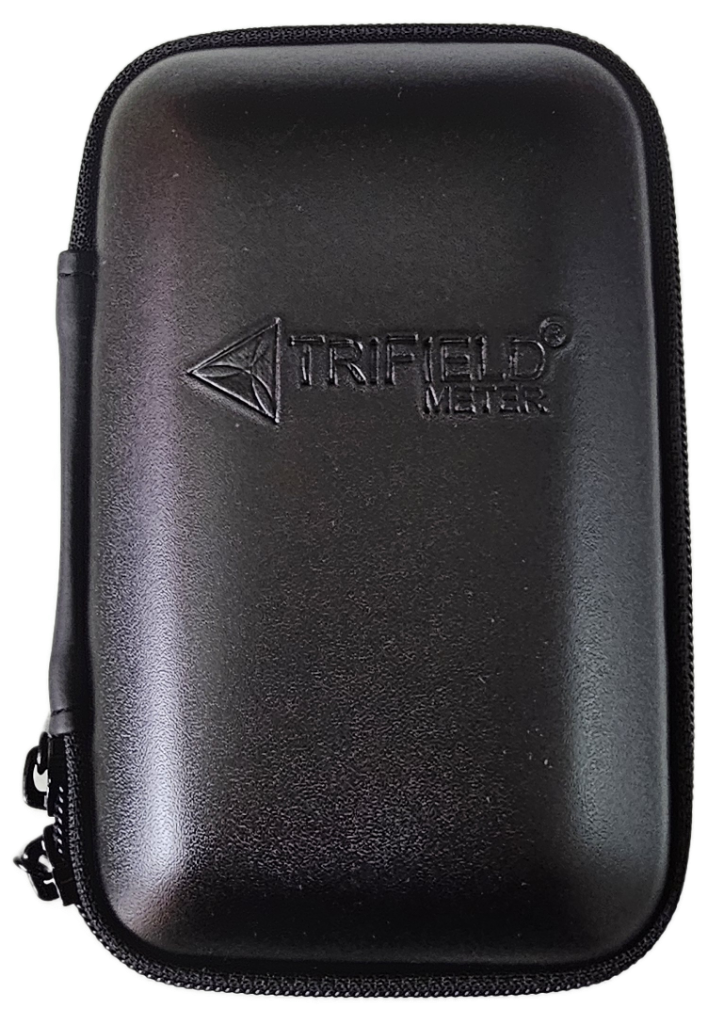

Need a storage case to fit the Trifield meter? Check out the Pelican Protector R40 Ruck case. It's weatherproof, crushproof and strong! Click here.
| Specifications | ||
|---|---|---|
| AC Magnetic | 3-axis, true magnitude | |
| Frequency Range | 40 Hz – 100 kHz | |
| Accuracy | ±4% @ 50/60 Hz | |
| Maximum Range | 100.0 milligauss | |
| Sensitivity (Resolution) | 0.1 milligauss | |
| AC Electric | 1-axis, true magnitude | |
| Frequency Range | 40 Hz – 100 KHz | |
| Accuracy | ±5% @ 50/60 Hz | |
| Maximum Range | 1000 V/m | |
| Sensitivity (Resolution) | 1 V/m | |
| RF(Radio)/Microwave | 1-axis | |
| Frequency Range | 20 MHz – 6 GHz | |
| Accuracy | ±20% @ 1 GHz | |
| Maximum Range | 19.999 mW/m2 | |
| Sensitivity (Resolution) | 0.001 mW/m2 | |
| Battery | 9V alkaline battery with indicator | |
| Battery Life Backlight Off | > 20 hrs | |
| Battery Life Backlight On | > 12 hrs | |
